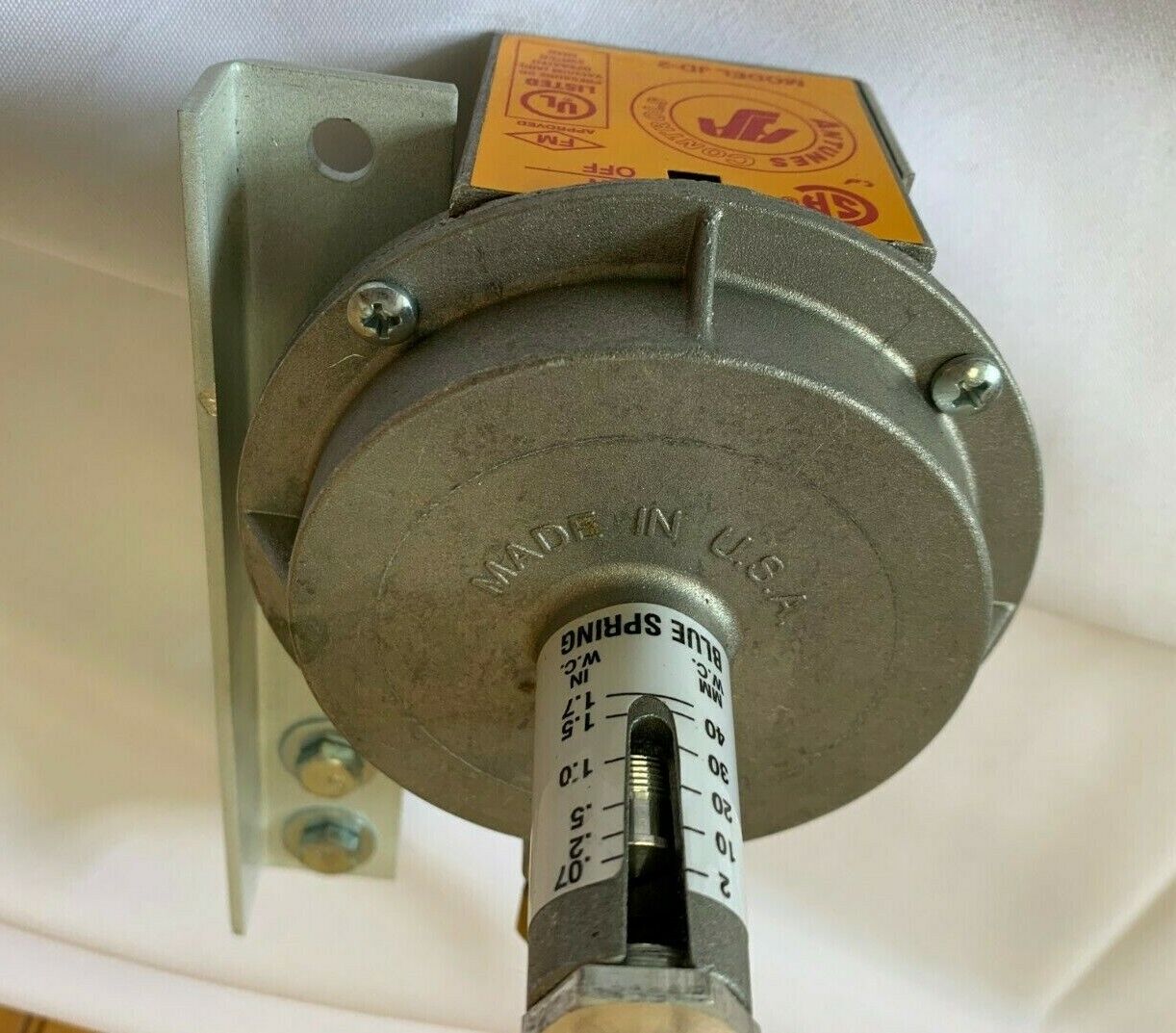

ADC WFR820864, ADG-400 Combustion Air Switch Assembly
ADC WFR820864, ADG-400 Combustion Air Switch Assembly
Regular price
$93.75 USD
Regular price
Sale price
$93.75 USD
Unit price
/
per
Couldn't load pickup availability
MPN: WFR820864
Brand: ADC
Features:• Sensitive diaphragm.
• Snap-action electrical switch S.P.D.T. rated at 10 amps.
• Visible ON-OFF indicator in compact die-cast aluminum housing.
• Spring adjustable switches—dual scales calibrated in millimeters and inches of water column.
• Five range scales—from 0.07” W.C. to a maximum of 35” W.C.
• Setpoint indication.
• Rugged die cast aluminum construction.

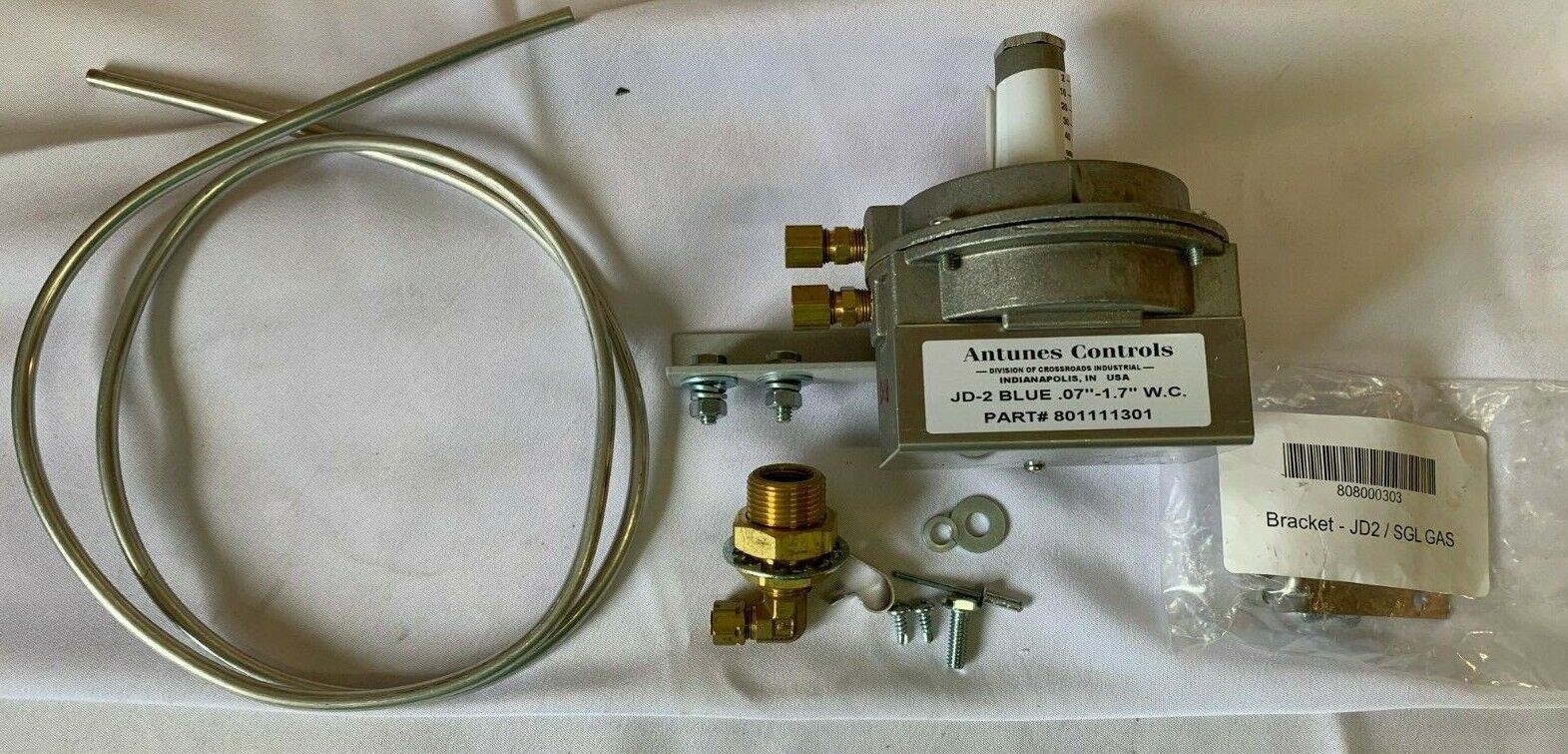

JD-2 Air Pressure Switch Model JD-2B Blue Spring .07" to 1.7" W.C. (2 mm to 43 mm)
Specifications:
Blue Spring: .07” to 1.7” W.C. (2 mm to 43 mm)
Electrical: 10 A, 1/8 HP, 125 VAC; 5 A, 1/4 HP, 250 VAC;
Pilot Duty, 125 VA @ 125-250 VAC.
Field wiring by others must be rated at 194°F (90°C) for
industrial use.
Max. Operating Pressure: 35” W.C.
Max. Surge Pressure: 3 PSIG
Max. Ambient Operating Temperature: 140°F (60°C)
Min. Ambient Operating Temperature: -20°F (-28°C)
Blue Spring: .07” to 1.7” W.C. (2 mm to 43 mm)
Electrical: 10 A, 1/8 HP, 125 VAC; 5 A, 1/4 HP, 250 VAC;
Pilot Duty, 125 VA @ 125-250 VAC.
Field wiring by others must be rated at 194°F (90°C) for
industrial use.
Max. Operating Pressure: 35” W.C.
Max. Surge Pressure: 3 PSIG
Max. Ambient Operating Temperature: 140°F (60°C)
Min. Ambient Operating Temperature: -20°F (-28°C)
