GA Braun 600 TSL Extract Motor - Magnetek Extract motor 6-962361-40F2, D24610

GA Braun 600 TSL Extract Motor - Magnetek Extract motor 6-962361-40F2, D24610

$3,000.00 USD
$3,000.00 USD
Sale Sold out

Actual Rated Input Voltage: 200

Full Load Amps: 73/53

IEC Frame Size: 364Z

AC Frequency Rating: 60 Hz

Enclosure Type: DP (Drip-Proof)

Base RPM: 1700/850

Serial Code: BP09

Insulation Class: B (Max 266°F)

Definite Purpose Motor Type: Extract

Brand: Magnetek

Service Factor: 1.15

NEMA Frame Suffix: 25

AC Phase: Three Phase

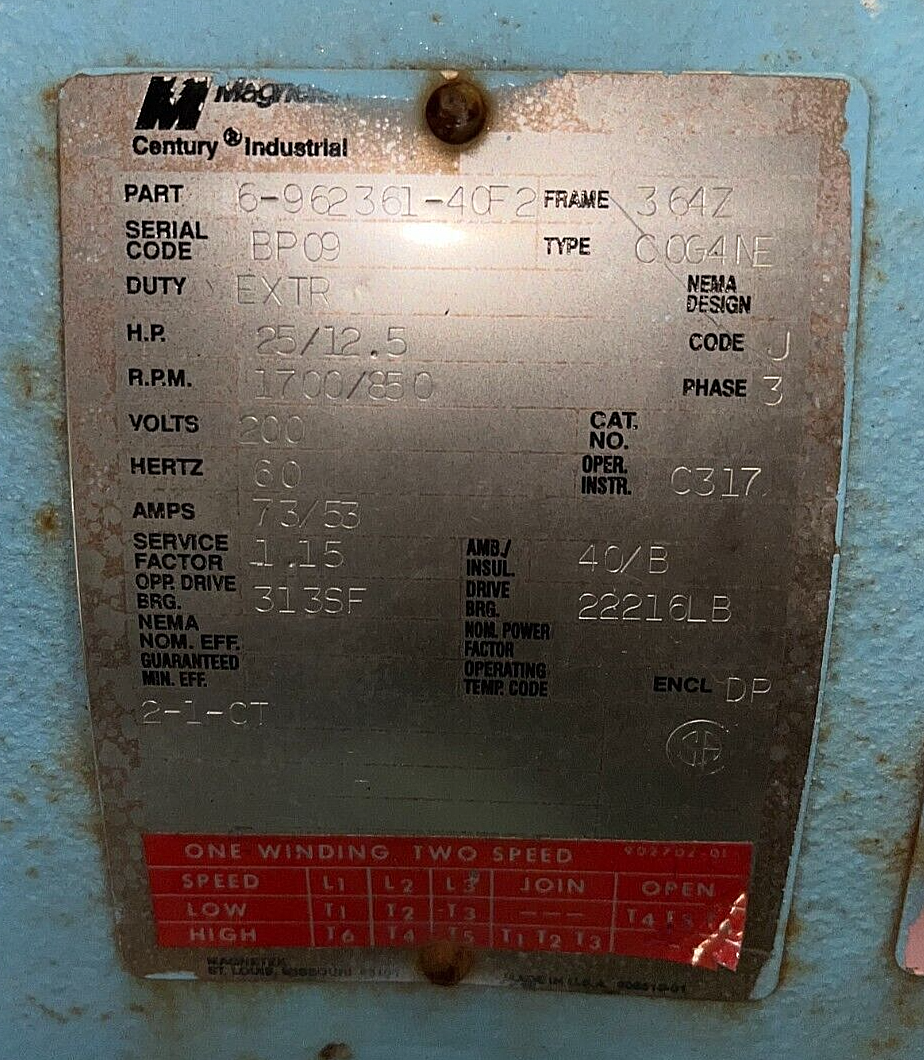

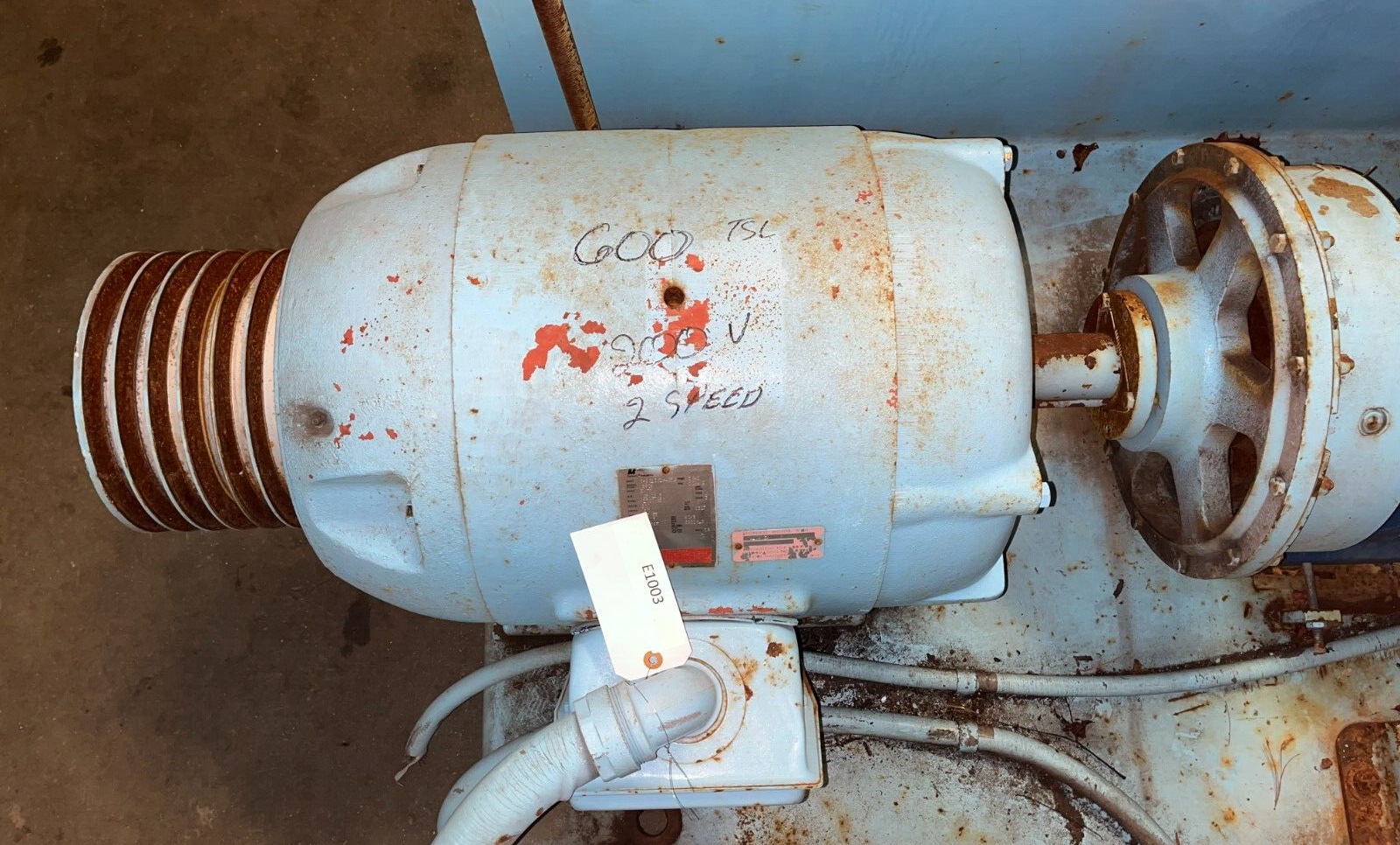

Magnetek 25HP motor
Extract Motor
Goes on a G.A Braun 600 TSL washer, part # D24610
2 Speed
200 V
Part # 6-962361-40F2
Frame 364Z
Serial Code BP09
Type COG4NE
Extra Duty
Opp Drive Brg 313SF
Drive Brg 22216LB
Sold As Is, Will Recondition for additional fee

Shipping & Returns

In Stock parts will ship same or next business day. Returns are pursuant to our Terms of Sale.

View full details
