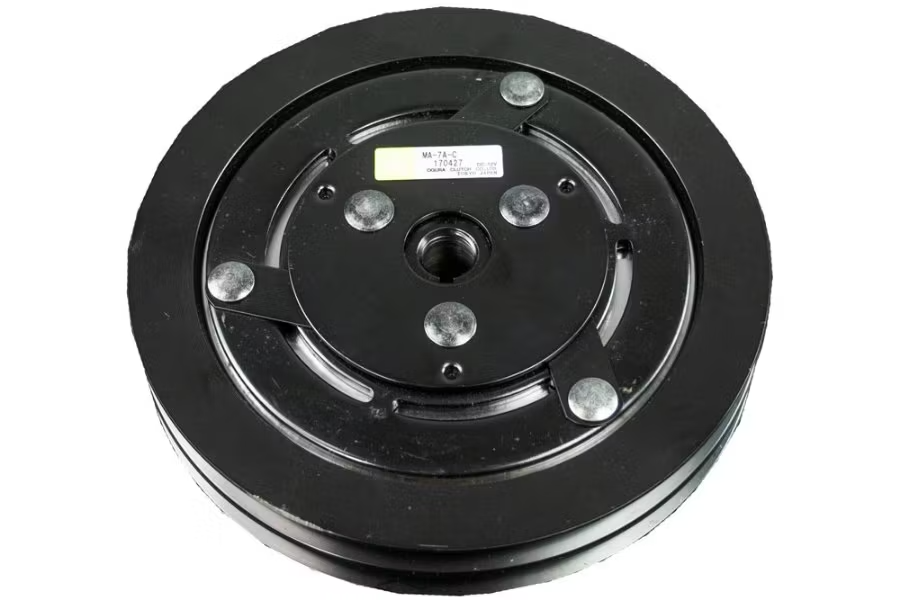

Ogura Electric Clutch Engine Mounted 12 VDC

Ogura Electric Clutch Engine Mounted 12 VDC

$126.00 USD
$126.00 USD
Sale Sold out

Brand: Ogura

Country of Origin: Japan

Replacement 12 VDC electric clutch. Used for double v-belt applications with the 326-9110-052 pump and other pumps with the tapered and keyed shafts. Compatible with Force America Products.

NOTE TO INSTALLER BURNISHING: Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).

TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

  • Bolt hole center to center: 4 1/2" x 3 5/16"
  • 7" diameter heavy duty electric clutch
  • 7/8" Tapered Shaft
  • 3/16" Keyway
  • 95' Pound Torque
  • Used for double v-belt applications
  • Fits the tapered, keyed pump shaft
