Wica
Wika Transmitter E-10
Wika Transmitter E-10
Couldn't load pickup availability
Pressure Type: Absolute
MPN: 4365076
Brand: Wica
Termination Type: Cable
(E163)

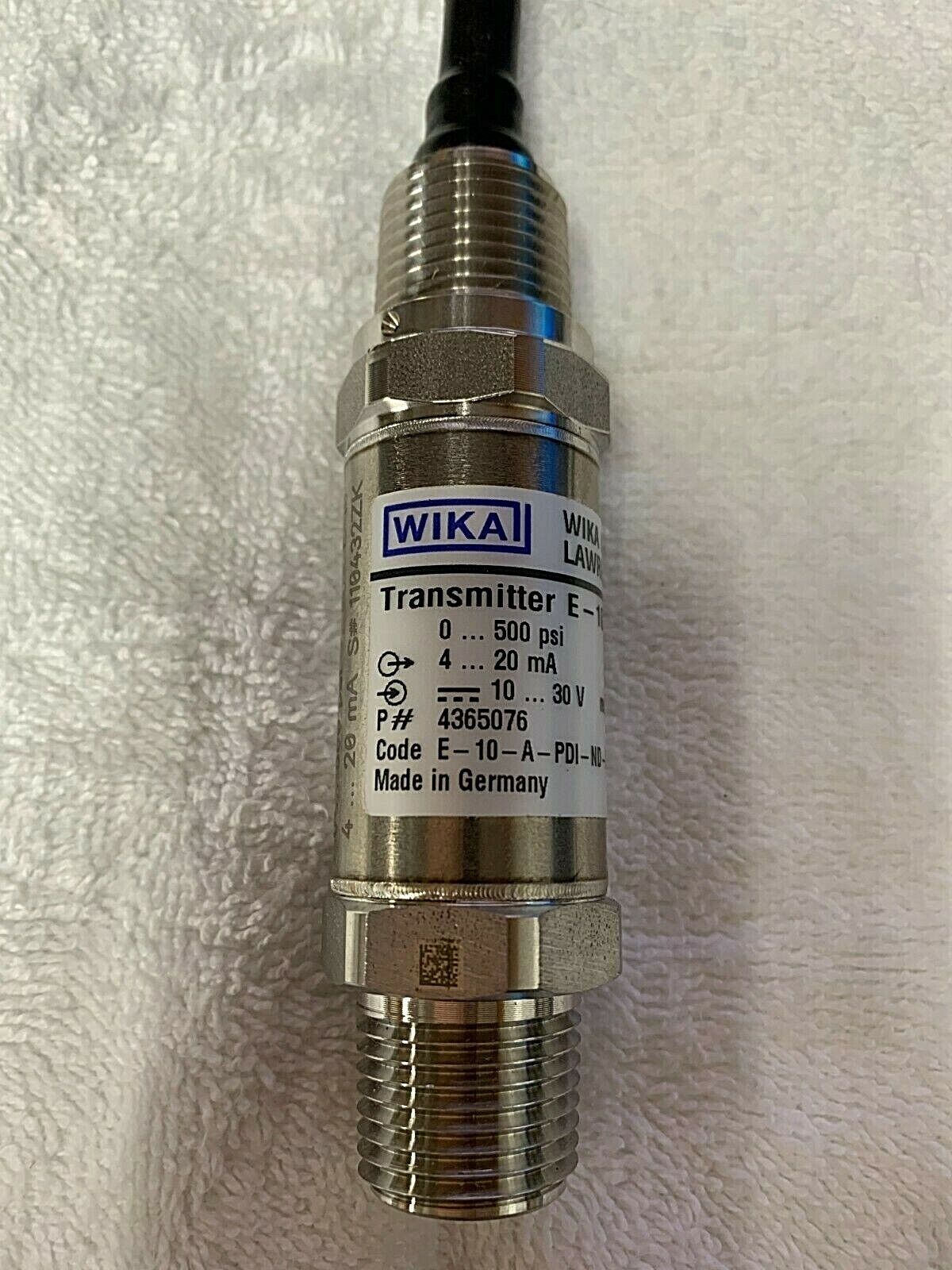

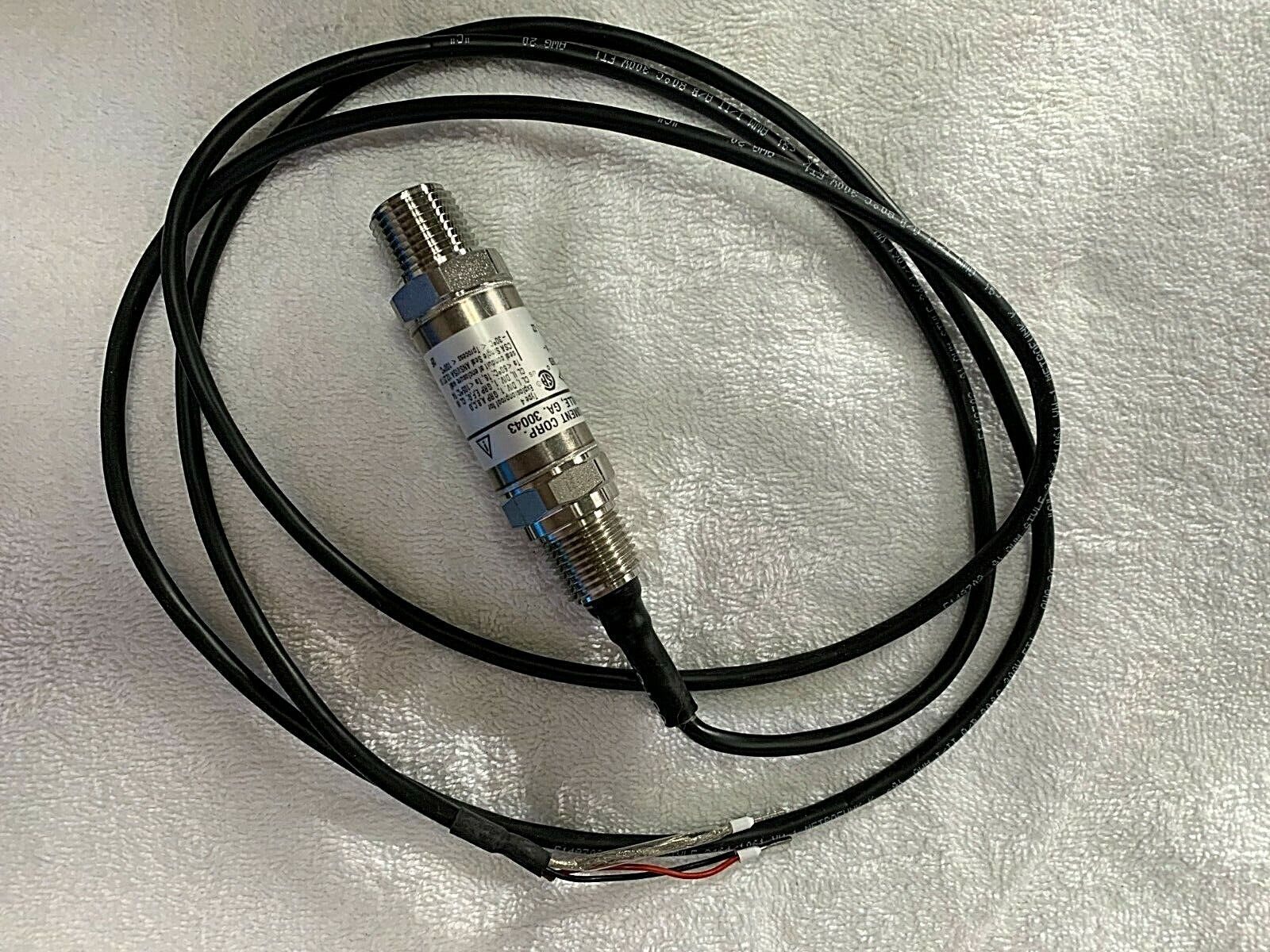

Type E-10 - Explosion Proof Pressure Transmitter
- NPT
Specifications according to data sheet: PE 81.27
Accuracy: 0.5% of span
Material of Wetted Parts: stainless steel
Case: stainless steel
Output signal: 4 ... 20 mA, 2-wire
Pressure Range: 0 ... 500 psi
Process Connection: 1/2 NPT
Electrical Connection: 1/2" NPT male conduit with free ends

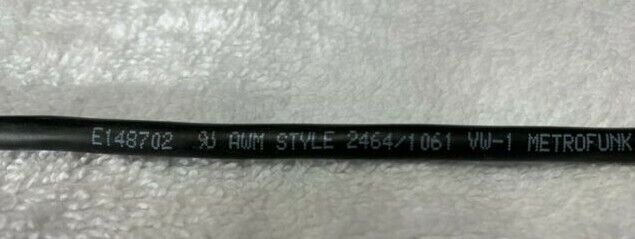

Cable Length: 6 ft
Power supply: 10...30 V DC
pin assignment el. connection: UB=RD, 0V=BK
explosionproof Class I, II, III, Div. 1 per FM and CSA
